Pygame Zero: Nice Bike!

Before we're done, you'll draw this bicycle on the screen out of nothing but straight lines and circles. There's no draw_bicycle() function — there's you, some coordinates, and a bit of geometry. First we need a window, some color, and a way to place shapes exactly where we want them.

---

Overview

In this lab you'll open a Pygame Zero window, learn how colors are built from red, green, and blue, and use the drawing functions for lines and circles. Then you'll put it all together to reproduce a bicycle from a set of coordinates.

Builds on: Getting Set Up for Pygame Zero — your pygame-zero folder and the import pgzrun / pgzrun.go() bookends.

Before you start

Open Thonny and start a new program named bike.py. Save it in your pygame-zero folder.

You've got it when…

• A window opens at the size your WIDTH and HEIGHT set.
• You can fill the background with a color, by RGB numbers or by name.
• Your bicycle matches the target — both wheels, the frame, the seat, and the handlebar in the right places.

Collaboration & AI

Work: On your own. Ask a neighbor if you get stuck, but the program you submit should be yours.

AI — AIAS Level 1, No AI: This lab is about learning to place shapes with coordinates yourself, so set AI aside for this one. What the levels mean.

---

Create a Window

Start with the bookends from the setup lab, then two variables, WIDTH and HEIGHT, between them. Pygame Zero uses these special variables to set the size of the window.

bike.py

import pgzrun

WIDTH = 300
HEIGHT = 300

pgzrun.go()

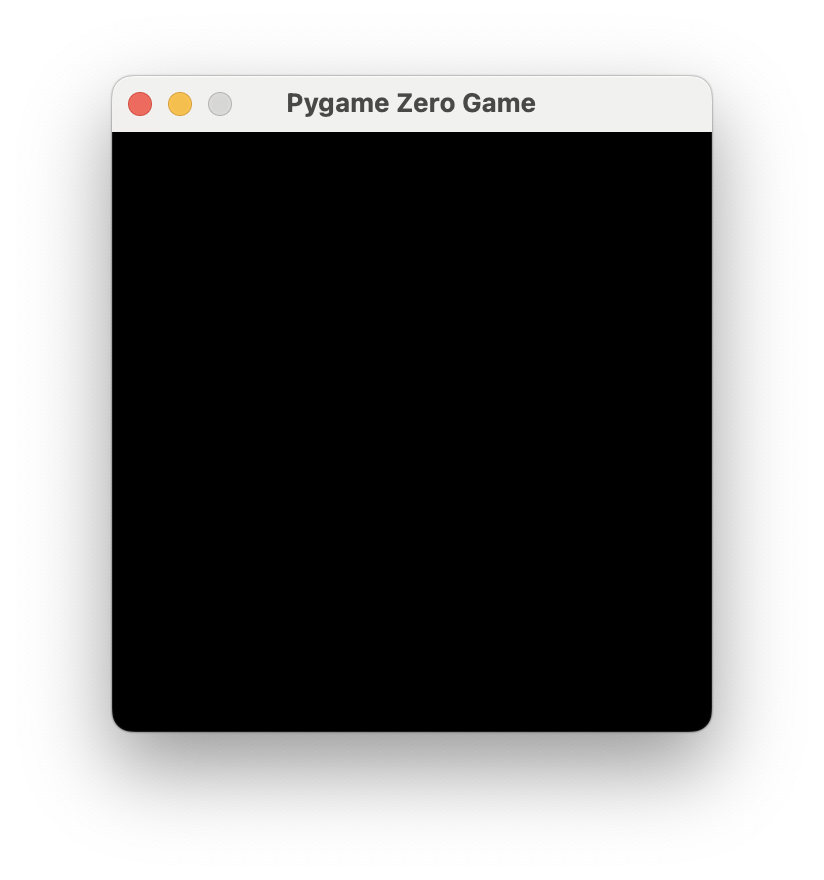

Try it out. Your screen should look like this.

Now make the window larger by changing the highlighted lines.

bike.py

import pgzrun

WIDTH = 800
HEIGHT = 600

pgzrun.go()

Warning

If your window doesn't change size, check that the variables WIDTH and HEIGHT are spelled exactly as shown here.

---

Colors

Mixing Colors

Add the highlighted lines.

bike.py

import pgzrun

WIDTH = 800
HEIGHT = 600
BGCOLOR = (135, 206, 250)

def draw():
    screen.fill(BGCOLOR)

pgzrun.go()

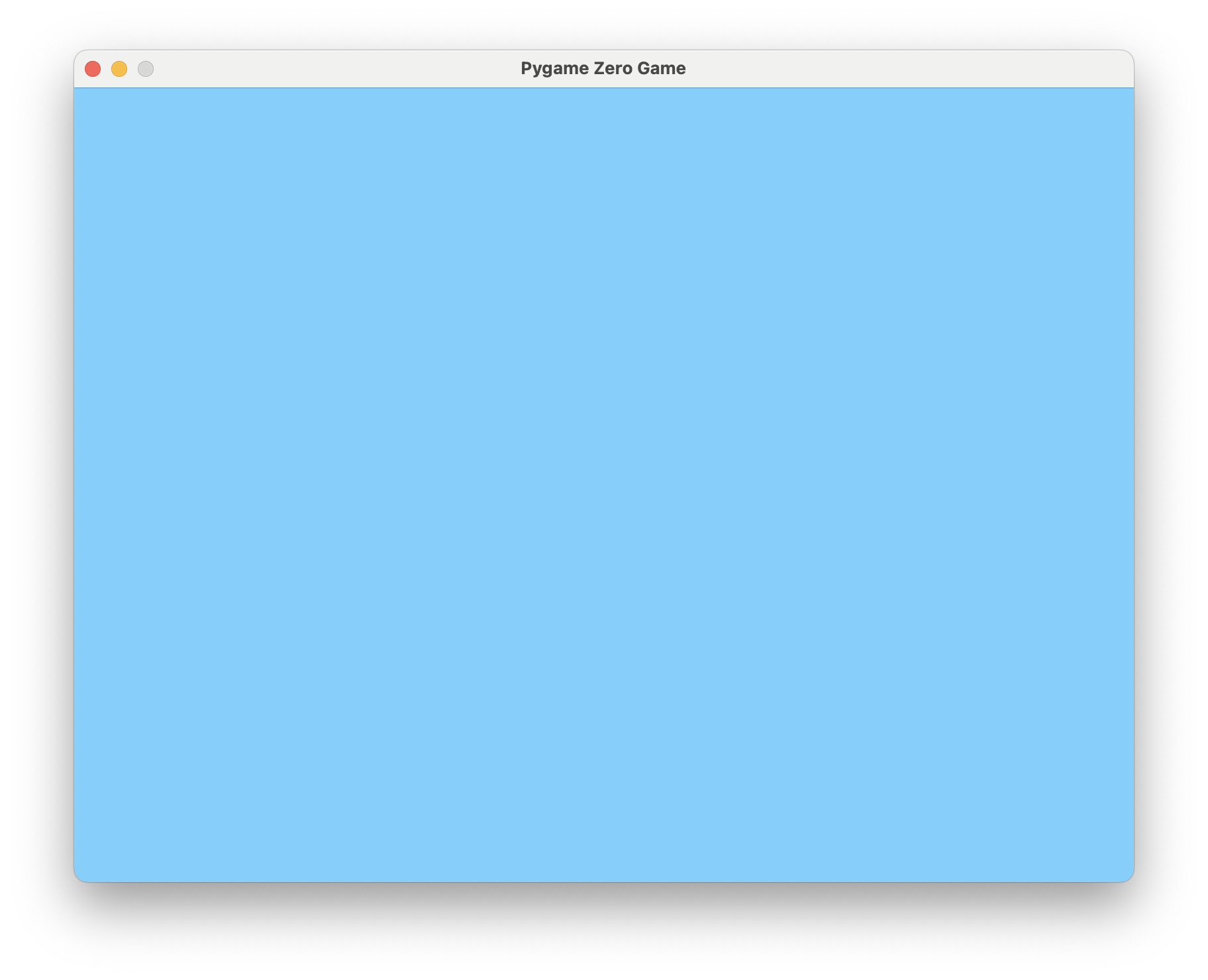

Your screen should look like this.

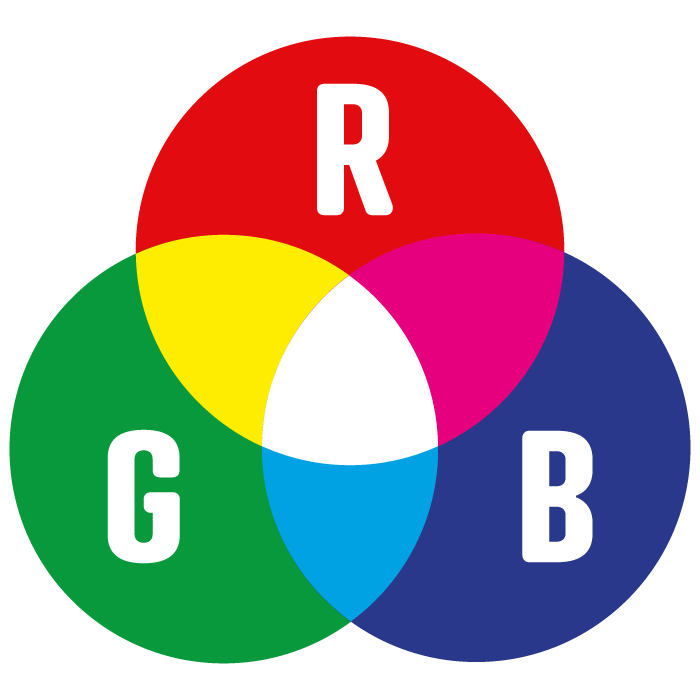

What do the numbers in (135, 206, 250) mean? In computer graphics, a color is usually three numbers giving a mix of red, green, and blue, or RGB. Each value runs from 0 to 255 and says how much of that channel to add.

Why 0 to 255?

Remember binary numbers. Each color gets one byte — eight bits — to say how much to mix. The largest value eight bits can hold is 11111111 in binary, which is 255 in decimal. That's the ceiling for red, green, and blue.

Try the color picker here and blend some custom colors.

Named Colors

You can also use names for many colors instead of RGB numbers. Try changing the BGCOLOR variable like this:

BGCOLOR = "skyblue"

Warning

Notice that the color name "skyblue" is in double quotes. This tells Python the value is a string — a piece of text.

---

Drawing

The draw() Function

Everything drawn inside your window happens inside a special function named draw. We used it above to set the background color with screen.fill().

2D Graphics Coordinates

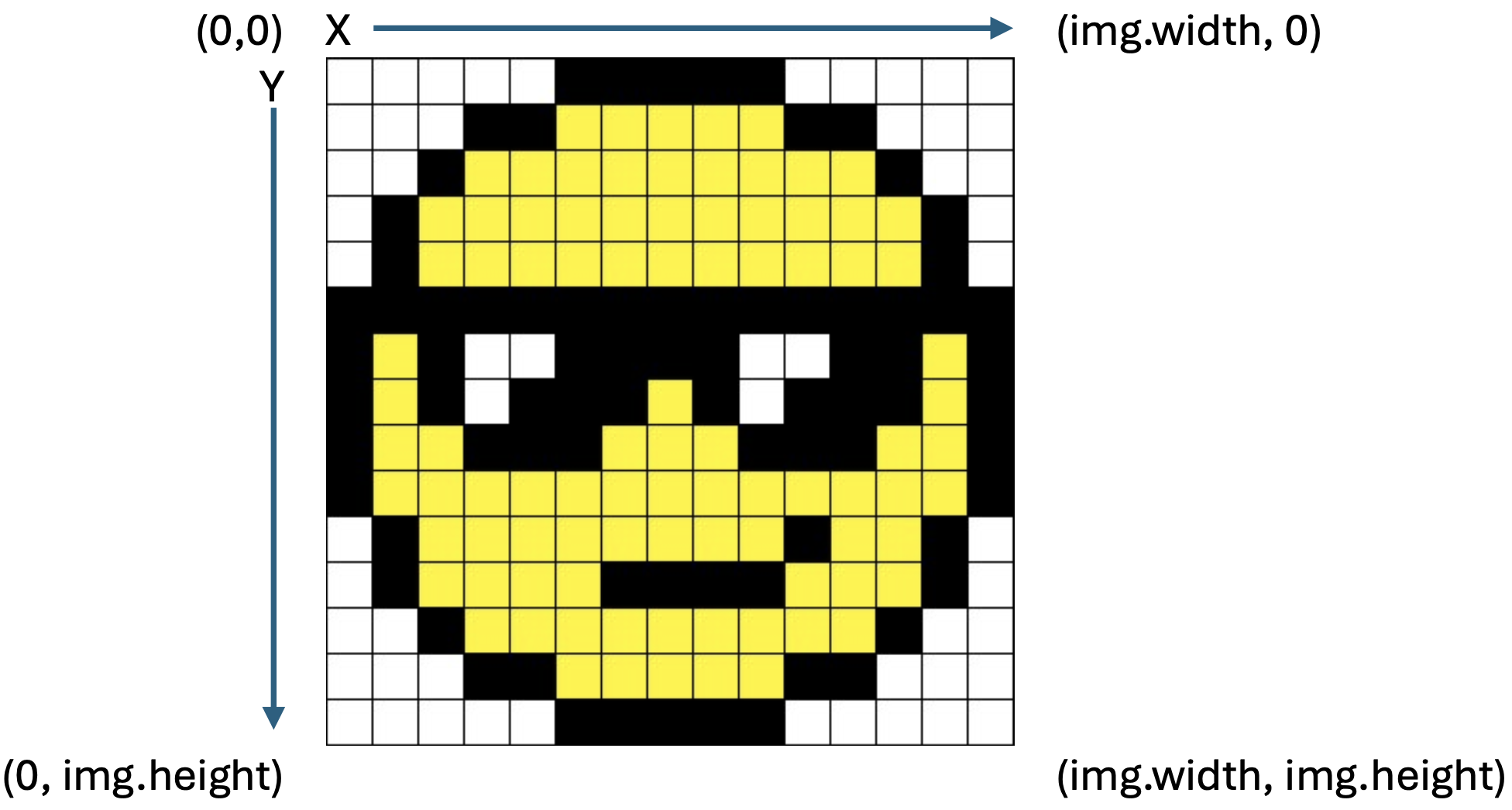

2D graphics usually put the origin (0, 0) at the upper-left pixel. The x-axis increases from left to right, and the y-axis increases from top to bottom.

Info

This is different from Scratch, where the origin sits in the center of the screen. In Pygame Zero it's the upper-left corner.

Lines and Circles

Update your draw() function with the highlighted lines.

bike.py

import pgzrun

WIDTH = 800
HEIGHT = 600

def draw():
    screen.fill("skyblue")
    screen.draw.circle((250, 250), 50, "white")
    screen.draw.filled_circle((250, 100), 50, "red")
    screen.draw.line((150, 20), (150, 450), "purple")
    screen.draw.line((150, 20), (350, 20), "purple")

pgzrun.go()

Notice that x/y coordinates are given inside their own parentheses. These are the functions you'll use to draw:

Function	What it does	Example
screen.draw.line(start, end, color)	Draws a line from start to end. start and end are x/y coordinates; color is an RGB tuple or a name.	screen.draw.line((150, 20), (150, 450), "purple")
screen.draw.circle(pos, radius, color)	Draws the outline of a circle centered at pos. radius is half the diameter.	screen.draw.circle((250, 250), 50, "white")
screen.draw.filled_circle(pos, radius, color)	Same as circle, but filled with the color instead of just an outline.	screen.draw.filled_circle((250, 100), 50, "red")

---

Challenge: Draw a Bicycle

Reproduce the bicycle drawing below precisely.

Warning

Read all of the hints and tips below before you begin.

Hints and Tips

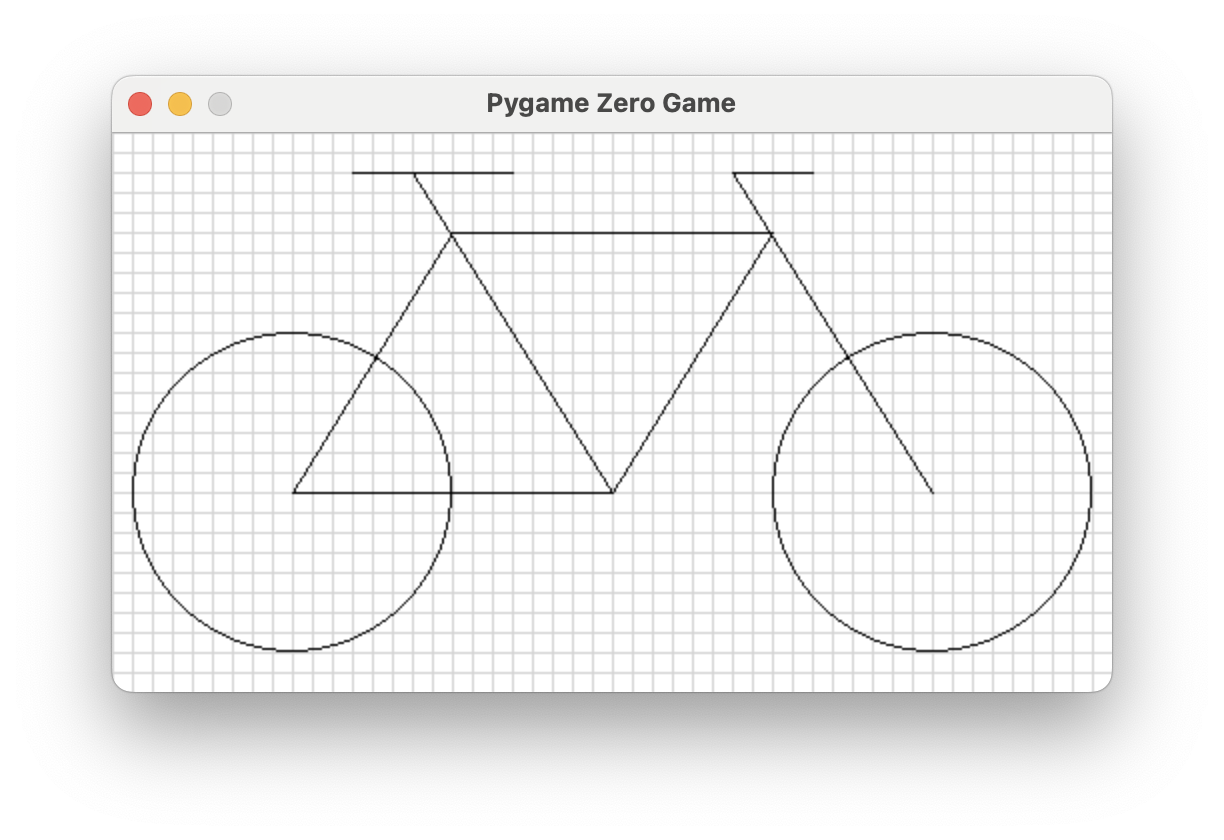

1. Here is the bicycle on a grid. Each grid square is 10 x 10. You do not need to draw the grid.



2. The screen is 500 wide and 280 high.

3. The rear wheel is centered at (90, 180); the front wheel at (410, 180). Both wheels have a radius of 80.

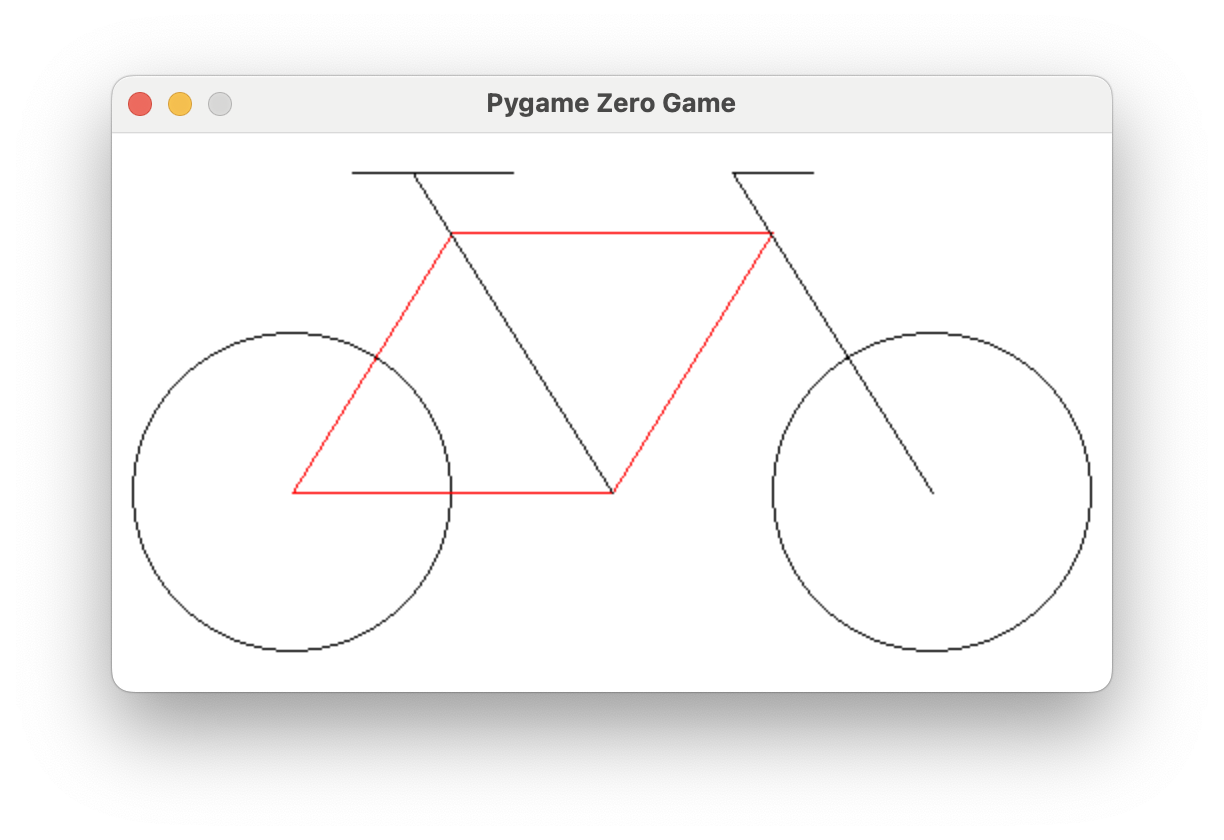

4. The frame (shown in red) connects (170, 50), (330, 50), (250, 180), and the center of the rear wheel.

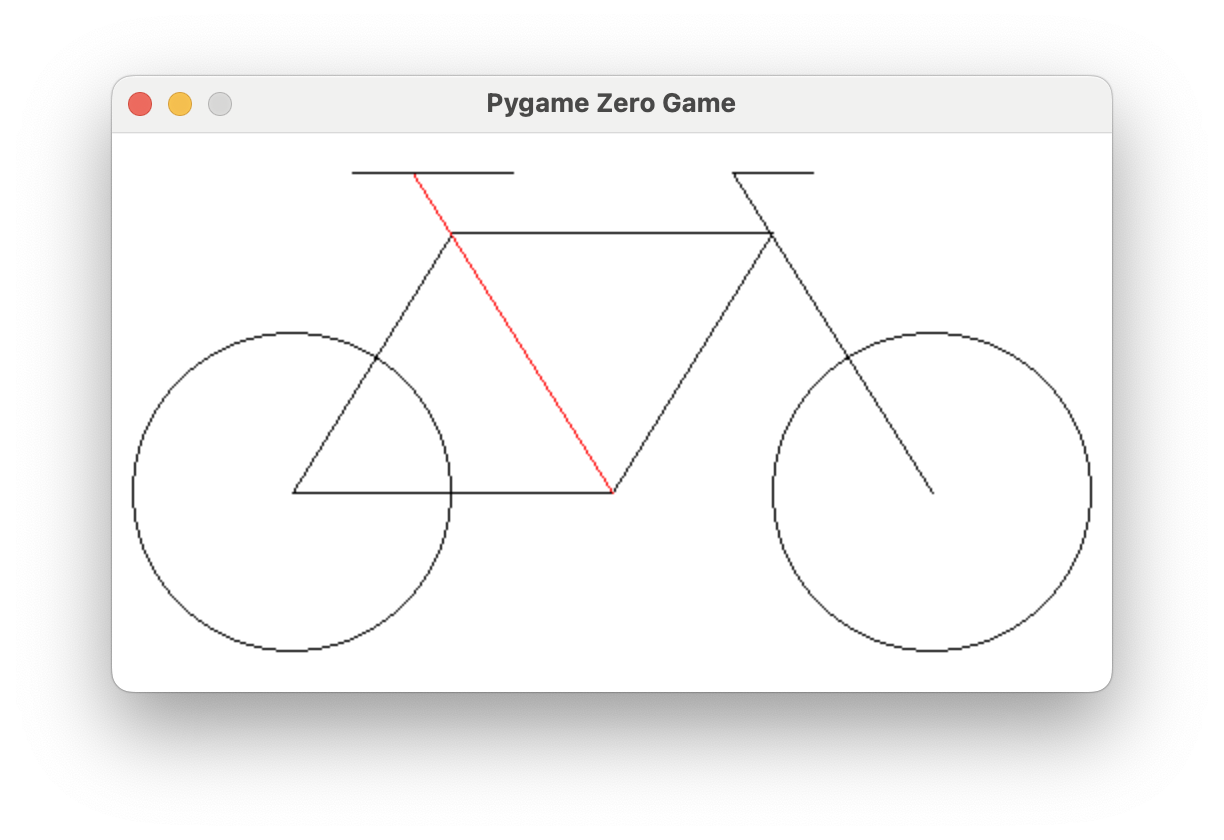

5. The seat tube (in red) connects one of the lower frame points to (150, 20).

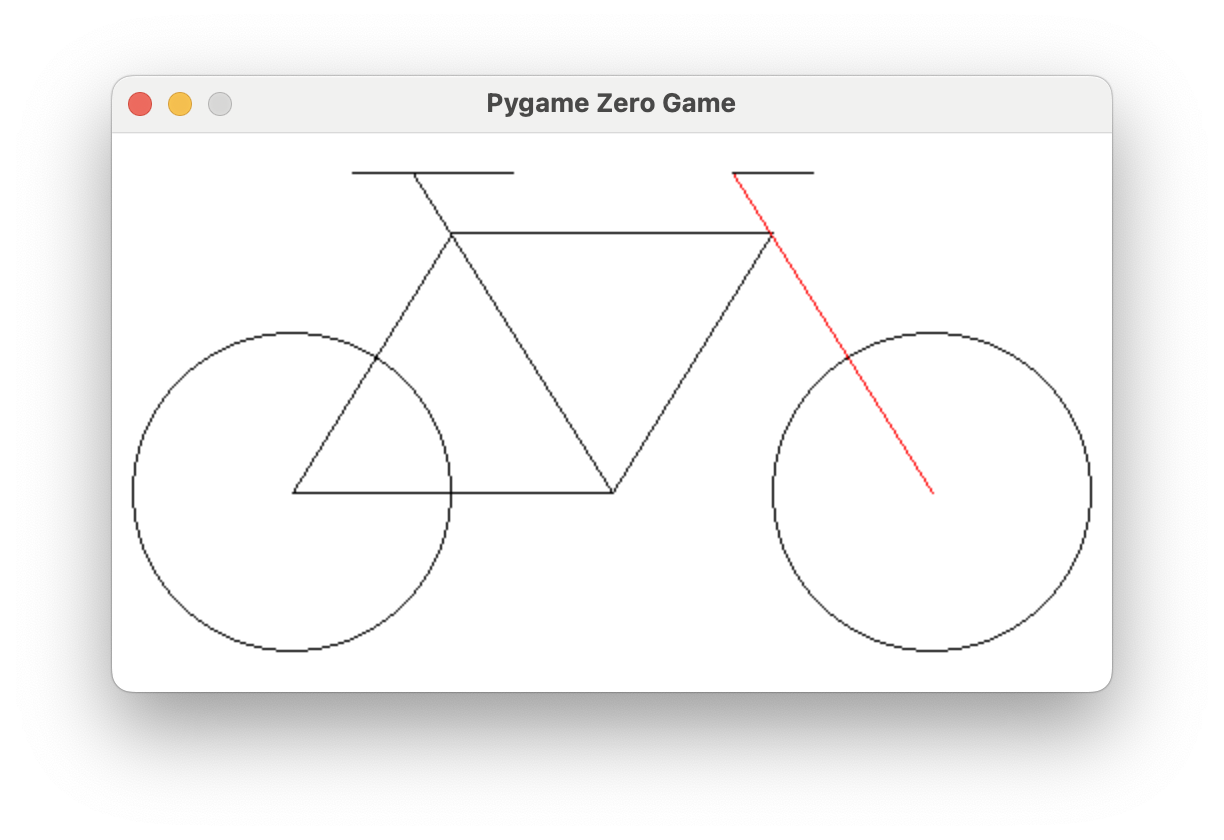

6. The steering tube (in red) connects the center of the front wheel to (310, 20).



7. The handlebar (in red) is 40 long.



8. The seat (in red) is 80 long, with the x-coordinate of its rear end at 120.



Bonus

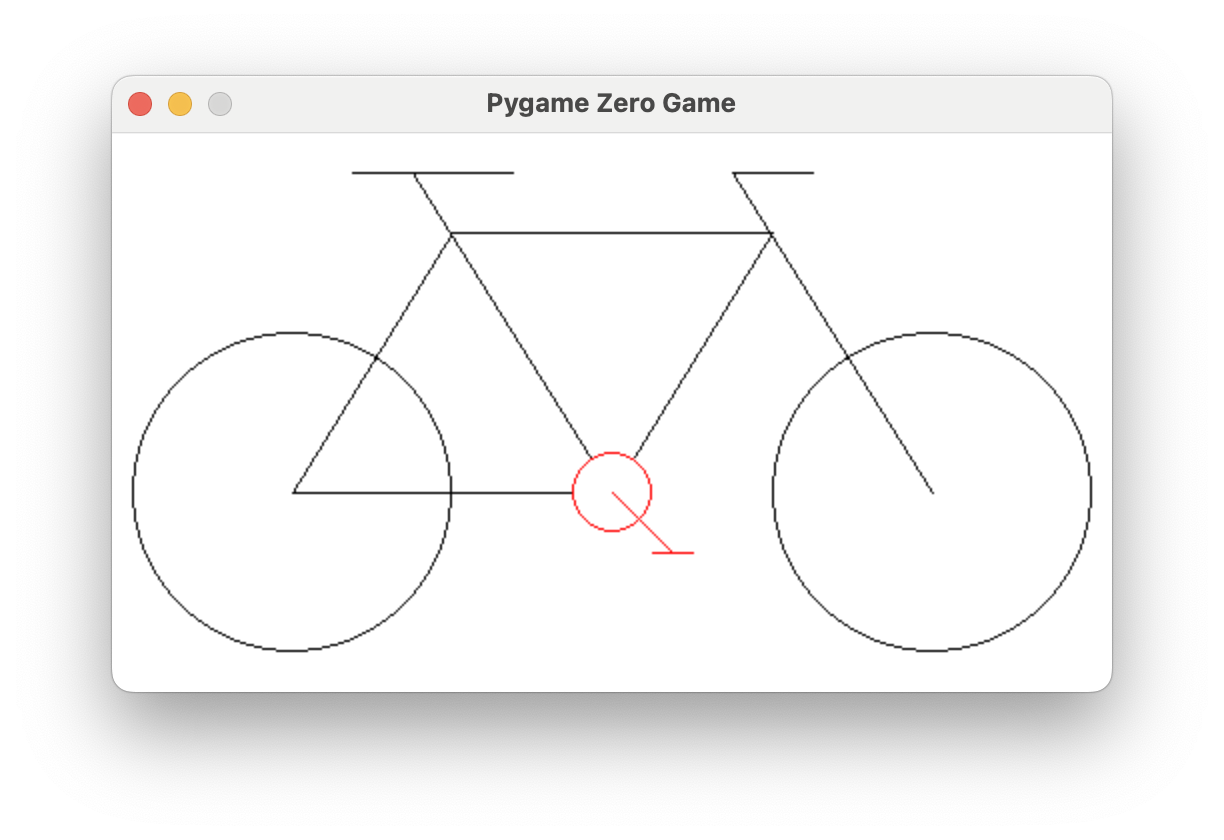

Draw a crank and pedal with any design you like. In the example, the crank hides part of the frame behind it but still has a red outline — done with two circles: a white filled circle, then a red outline circle on top of it.

---

Turn It In

• Submit your bike.py file with your program to draw the bicycle in Google Classroom.

---

How It's Graded

This lab is worth up to 4 points. One score covers everything you turn in.

Score	What it looks like
4 — Excellent	Your bicycle matches the target precisely — wheels centered at (90, 180) and (410, 180) with radius 80, and the frame, seat tube, steering tube, handlebar, and seat all land on the coordinates from the hints. The code reads like a plan, not like guess-and-check leftovers.
3 — Above Average	The whole bicycle is there and recognizable, with a few placement slips — a tube starting a bit off its point, or a seat the wrong length.
2 — Average	The window, background, and some parts are drawn, but the bicycle is only half built — wheels with no frame, or lines that don't connect.
1 — Below Average	Little beyond an empty window or a background fill.
0 — Failing	Nothing submitted, or no drawing code at all.
