KidWind

Resources

• KidWind Rules
• KidWind Gears - official (Thingiverse) (local copy)
• KidWind Advanced Blade Design Manual

Generator

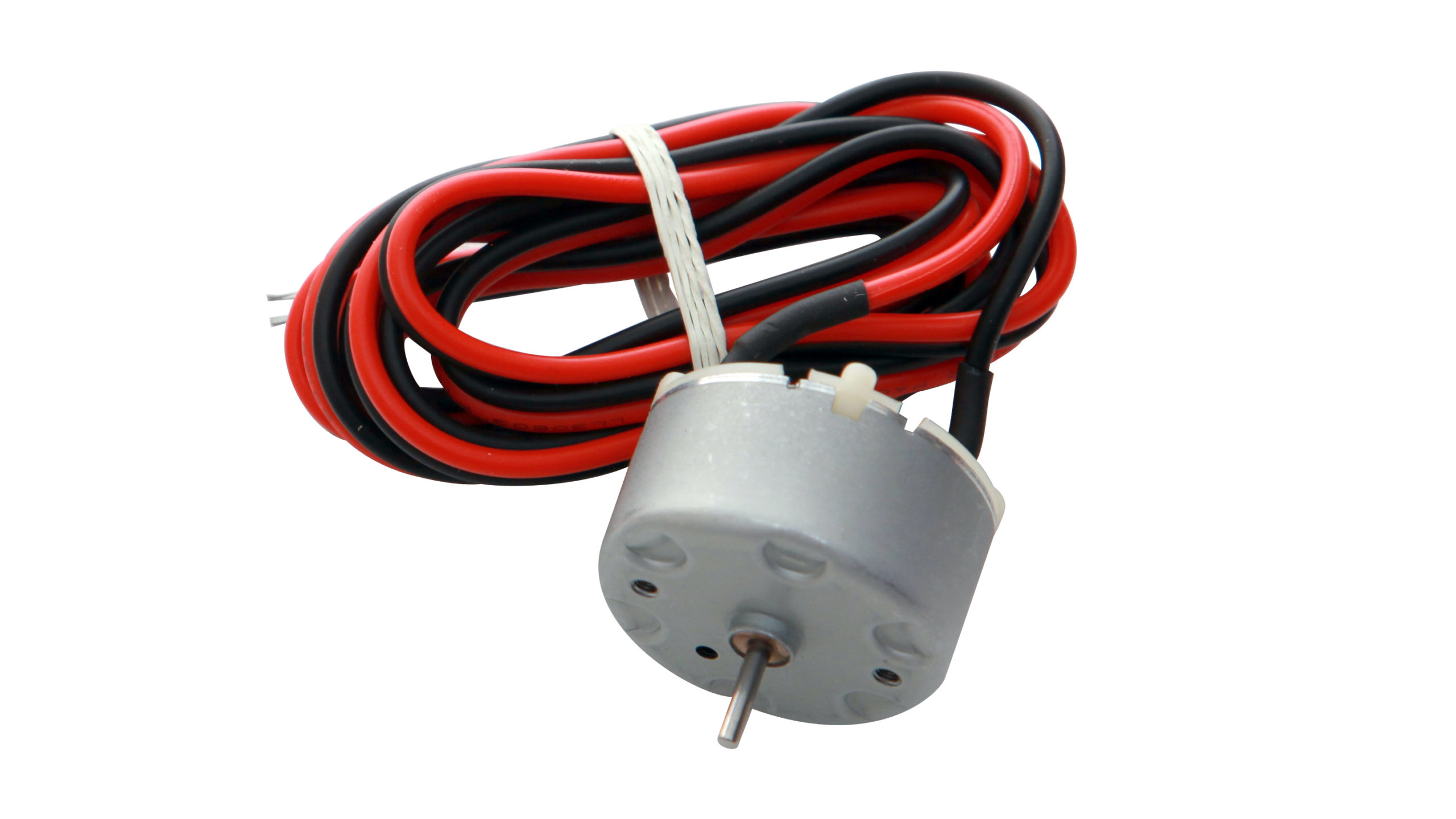

Vernier KidWind Wind Turbine Generator with Wires

• Mass: 41.6 g
• Rated Voltage: DC 5.9 V
• Rated Load: 10.0 g-cm
• At no load:
  • Speed = 2000 RPM
  • Current = 0.011 A
• At stall:
  • Torque = 40 g-cm
  • Current = 0.147 A
• At maximum efficiency:
  • Efficiency = 60.851%
  • Speed = 1569 RPM
  • Torque = 8.6 g-cm
  • Current = 0.040 A
  • Power = 0.144 W
• At maximum output:
  • Speed = 999 RPM
  • Torque = 20 g-cm
  • Current = 0.079 A
  • Power = 0.214 W
